Thermal Camera - TCeye
Product Overview
TCeye is a thermal imaging camera that operates based on standard Ethernet (IEEE 802.3) hardware and software protocols.
It provides real-time temperature monitoring and is suitable for safety, industrial, and public health applications
Thermal image monitoring system
- Thermal Camera Features
- Equipped with thermal image sensors
- Fire detection and alert functionality
- Dual alarm output
- Ethernet-based data transmission
- Applications
- Monitoring overheating in electrical panels
- Power plant facility monitoring
- Solar cell field monitoring
- Security and intrusion detection
- Cold storage and refrigeration facilities
- Waste management and cleaning facility monitoring
TCeye
Thermal Camera
Real-Time Thermal Monitoring System
- Key Features of TCeye
Prevention & Early Warning Functions
- Enables continuous thermal monitoring of critical electrical and mechanical components using thermal imaging technology.
- Detects anomalies in real time, allowing for early identification of potential faults, fire hazards, or abnormal operating conditions.
- Automatically detects overheating in specific areas and triggers alerts when temperatures exceed preset thresholds.
(PLC integration supported)
Compact Thermal Imaging Capability
- Compact design allows installation even in confined spaces for localized monitoring of key components.
- Supports up to 4,800 individual temperature sensing zones, with automatic detection of peak temperatures (Tmax).
- Enables targeted region monitoring and automatic calibration based on preset detection zones.
- Visual and temperature data are displayed on screen for real-time analysis.
- Comparison: TCeye vs. Conventional Temperature Sensors
| Category | TCeye (Thermal Camera) | Conventional Temperature Sensor |
|---|---|---|
| Temperature Monitoring | Real-time temperature change monitoring | Alert only after overheating occurs |
| Point Configuration | Supports up to 8 customizable points | Cannot configure individual points |
| Measurement Method | Image-based temperature detection via thermal camera | Measures average temperature of the equipment |
| Target Specificity | Identifies temperature of specific components | Only detects general temperature trends |
| Ease of Monitoring | Simple, visual confirmation via thermal image | Requires additional monitoring equipment |
| Fault Localization | Identifies exact overheating spot visually | Limited to single-point internal detection |

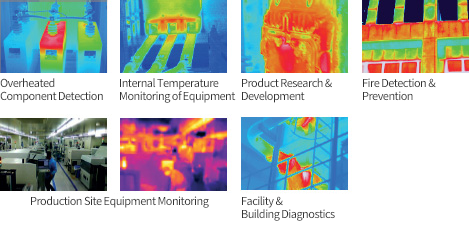

- TCeye Applications
- Configuration1_System
- Configuration 2 – Application Method
- Configuration_Thermal Camera Module
Product Specifications
| Item | Product Specifications | ||
|---|---|---|---|
| Model | TCeye-050 | TCeye-100 | TCeye-150 |
| Infrared resolution | 80×60Pixel | 80×60Pixel | 80×60Pixel |
| Temp resolution/ NETD | 〈0.10°C @ +30°C/100mK | 〈0.10°C @ +30°C/100mK | 〈0.10°C @ +30°C/100mK |
| Director type | FPA Non-cooled thermal image | FPA Non-cooled thermal image | FPA Non-cooled thermal image |
| Wavelength band | 7.5∼13um | 7.5∼13um | 7.5∼13um |
| Viewing angle (FOV) | H 51° × V 40° × D 63.5° | H 51° × V 40° × D 63.5° | H 51° × V 40° × D 63.5° |
| Focus | Fixed | Fixed | Fixed |
| Target temp | -10°C to+150°C(14°F to 302°) | -10°C to+150°C(14°F to 302°) | -10°C to+150°C(14°F to 302°) |
| Accuracy | ±2°C(±3.6°F)or indicative±2% (+10 ∼ +100C@+10 ∼ +35amb) | ±2°C(±3.6°F)or indicative±2% (+10 ∼ +100C@+10 ∼ +35amb) | ±2°C(±3.6°F)or indicative±2% (+10 ∼ +100C@+10 ∼ +35amb) |
| Spot Point | 10(Auto 2, Manual 8) | 10(Auto 2, Manual 8) | 10(Auto 2, Manual 8) |
| Alam | None | 2 OC outputs(100mA max) | 2 OC outputs(100mA max) |
| Strage | Temperature data(Excel file) | Temperature data(Excel file) | Temperature data(Excel file) |
| Trans method | · Ethernet (TCP/IP)100Mbps · Modbus (TCP/IP) | · Ethernet (TCP/IP)100Mbps · Modbus (TCP/IP) | · Ethernet (TCP/IP)100Mbps · Modbus (TCP/IP) · RS485 (Modbus RTU) |
| Operating temp | 0°C to +50°C(32°F to 122°F) | 0°C to +50°C(32°F to 122°F) | 0°C to +50°C(32°F to 122°F) |
| Power | · PoE only | · DC 48V(Input range DC18∼48V) · PoE Support | · DC 48V(Input range DC18∼48V) · PoE Support |
| Dimensions | W56 × H56 × D28 (mm) | W60 × H75 × D35 (mm) | W60 × H75 × D35 (mm) |
| Acc’y | · Ethernet Cable 2m | · Power & Alarm Cable 2m · Ethernet Cable 2m | · Power & Alarm Cable 2m · Ethernet Cable 2m |
Recommended Specifications
| Category | Specifications |
|---|---|
| Software | TCeye-UI V2.00 |
| Operating System | Windows 7 (x64) / Windows 10 (x64) |
| Recommended PC Specs | – CPU: Intel Core i5 or higher – RAM: 4GB minimum (8GB recommended) – HDD: 1TB or more |
| Camera Connection Capacity | Supports up to 50 cameras |
| Network | Ethernet 100 Mbps or higher |
| Data Size | – Image: approx. 11 KB – Temperature: approx. 2 KB |
| Data Storage | – Excel-compatible (.csv) – Stores per camera on a daily basis |
